• Available Model : DS-7208 / 7216HQHI-SH

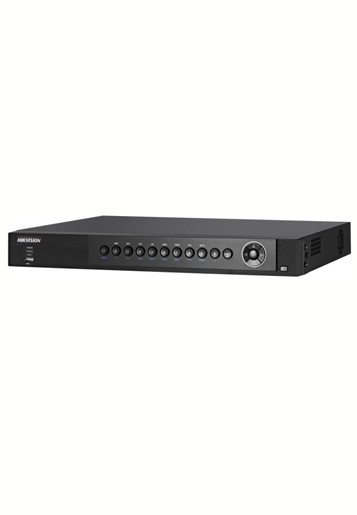

DS-7204/08/16HQHI-SH Series - DVR

  • Introduction
  • Main Features
  • Physical Interfaces
  • Typical Application
  • Specifications

Introduction

DS-7200HQHI-SH series DVR (Digital Video Recorder) is a new generation recorder developed by Hikvision independently which can connect HD analog cameras and provide powerful surveillance. Combined with multiple advanced technologies, such as audio and video encoding & decoding technology, embedded system technology, storage technology, network technology and intelligent technology. It can both work alone as a recorder and cooperate with other devices to build a comprehensive surveillance system.
The DS-7200HQHI-SH series DVR are widely applied in the areas of finance, public security, military, communication, transportation, education, etc..

Main Features

    • Connectable to HD-TVI and analog cameras and IP cameras;
    • Connectable to the Coaxitron camera/dome with long transmission distance
    • Simultaneous HDMI and VGA outputs at up to 1920x1080P resolution
    • New GUI and support starting record with one key;
    • Redundant recording and holiday recording;
    • Instant playback for assigned camera during multi-channel live view mode;
    • Support up to 16-ch synchronous playback at 1080P resolution; and reverse playback for multi-camera;
    • Smart playback to go through less effective information;
    • Manual video quality diagnostics;
    • VCA detection alarm (line crossing detection and instruction) is supported.
    • Customization of tags, searching and playing back by tags
    • Locking and unlocking record files
    • Support HDD quota management; different capacity can be assigned to different cameras under quota mode;
    • 2 SATA interface provide DS-7208/7216HQHI-SH and 1 SATA interface for DS-7204HQHI-SH;
    • Up to 1 self-adaptive 10M/100M/1000M network interface.
    • Support access by EZVIZ Cloud P2P;
    • Support Hikvision DDNS (Dynamic Domain Name System);
    • Network detection function

General Specification

      The rear panel of DS-7104 / DS-7261HQHI-SH provides 4/16 video input interfaces.

    • 1- VIDEO IN
    • 2- AUDIO IN, RCA Connector
    • 3- AUDIO OUT, RCA Connector
    • 4- VGA Interface
    • 5- HDMI Interface
    • 6- USB Ports
    • 7- LAN Network Interface
    • 8- RS-485 Serial Interface
    • 9- 12VDC Power Input
    • 10- Power Switch
    • 11- GND
    • 12 -ALARM IN and ALARM OUT

Typical Application

Specifications
